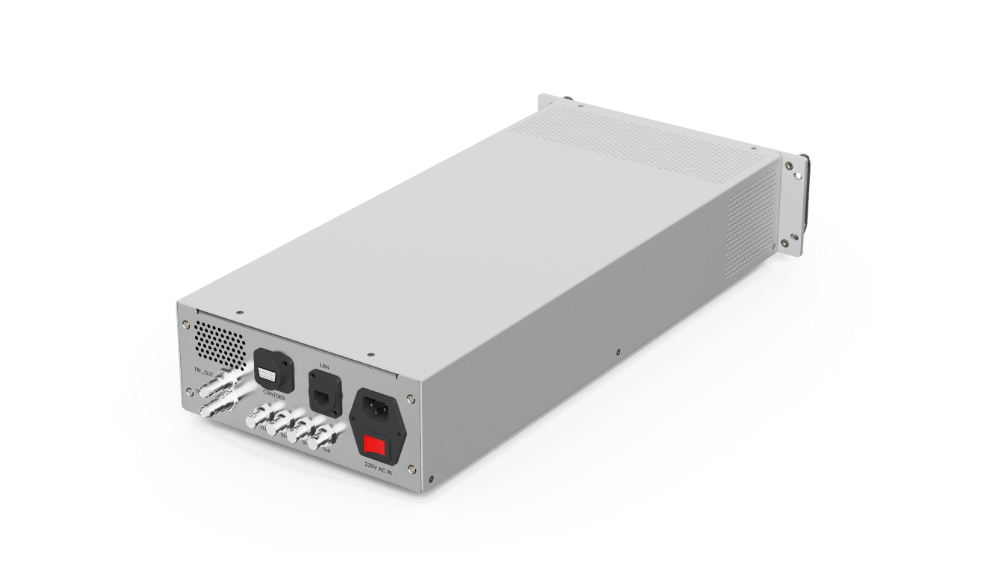

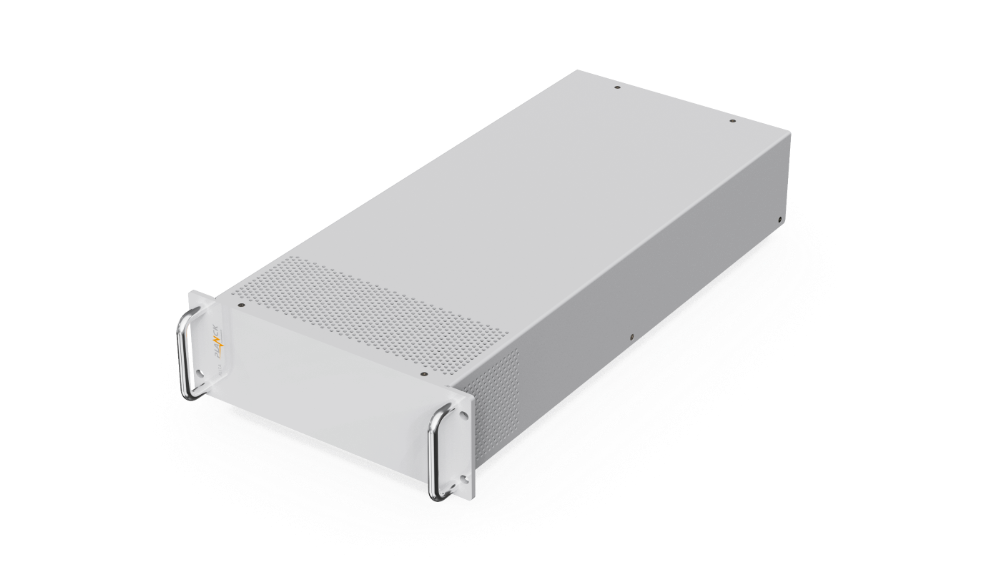

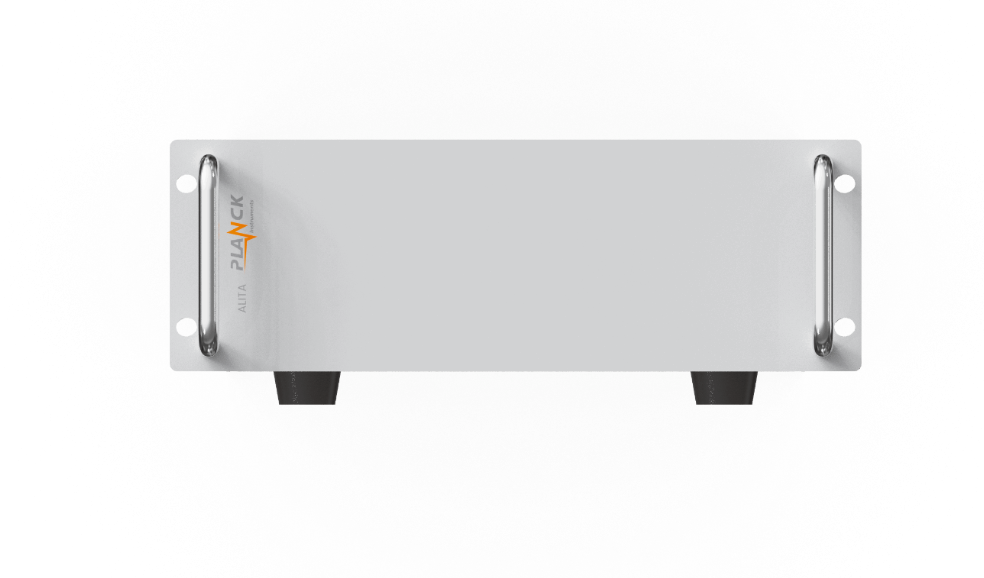

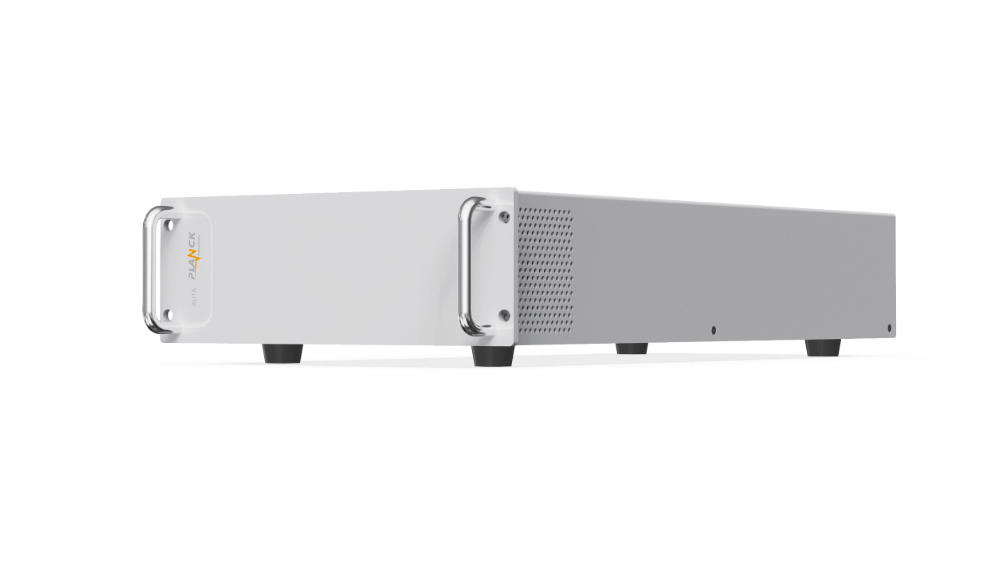

Alita - 2020
Features
- Wide range of voltage source (± 200V) and current source (± 1A DC) functions
- Excellent accuracy, minimum 1fA/100nV measure resolution
- Broad application range that spans uses from R&D and education to industrial development, production test and automated manufacturing.
Parameters
|
Voltage Source |
Voltage Measurement | |||
| Range | Programming Resolution | Accuracy (% + offset) |
Programming Resolution | Accuracy (% + offset) |
| ±20mV |
500nV |
0.100% + 200μV | 10nV | 0.100% + 150μV |
|
±200mV |
5μV | 0.015% + 200μV | 100nV | 0.012% + 200μV |
| ±2V |
50μV |
0.020% + 300μV | 1μV | 0.012% + 300μV |
| ±35V | 500μV | 0.015% + 2.4mV |
2μV |
0.015% + 1mV |
| ±200V | 5mV | 0.015% + 24mV |
20μV |
0.015% + 10mV |
|
Current Source |
Current Measurement | |||
| Range | Programming Resolution | Accuracy (% + offset) |
Programming Resolution | Accuracy (% + offset) |
| ±1nA |
30fA |
0.1% + 2pA | 1fA | 0.1% + 50pA |
| ±10nA | 300fA |
0.1% + 5pA |
10fA | 0.1% + 50pA |
| ±100nA | 3pA | 0.06% + 50pA |
100fA |
0.06% + 100pA |
| ±1μA | 30pA | 0.025% + 400pA |
1pA |
0.025% + 300pA |
| ±10μA | 300pA | 0.025% + 1.5nA |
10pA |
0.025% + 700pA |
| ±100μA | 3nA | 0.02% + 15nA |
100pA |
0.02% + 6nA |
| ±1mA | 30nA | 0.02% + 150nA |
1nA |
0.02% + 60nA |
| ±10mA | 300nA | 0.02% + 1.5μA |
10nA |
0.02% + 600nA |
| ±100mA | 3uA | 0.025% + 15μA |
100nA |
0.025% + 6μA |
| ±1A | 30uA | 0.067% + 900μA |
1μA |
0.03% + 500μA |
