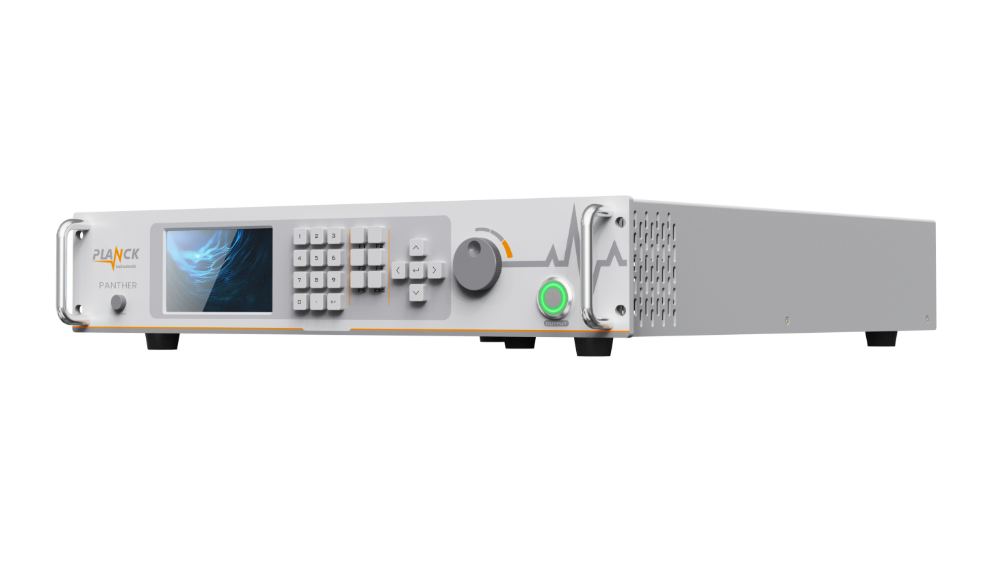

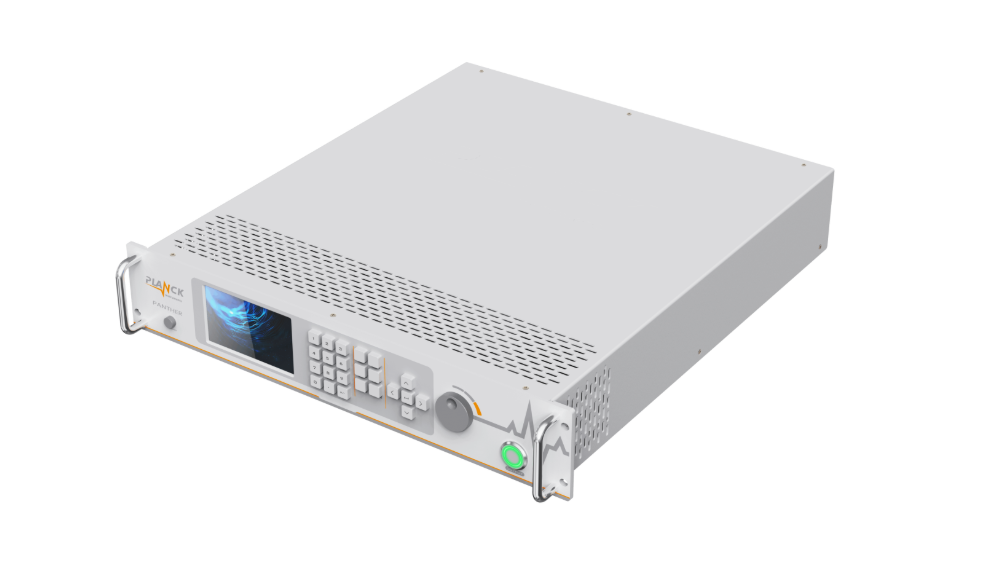

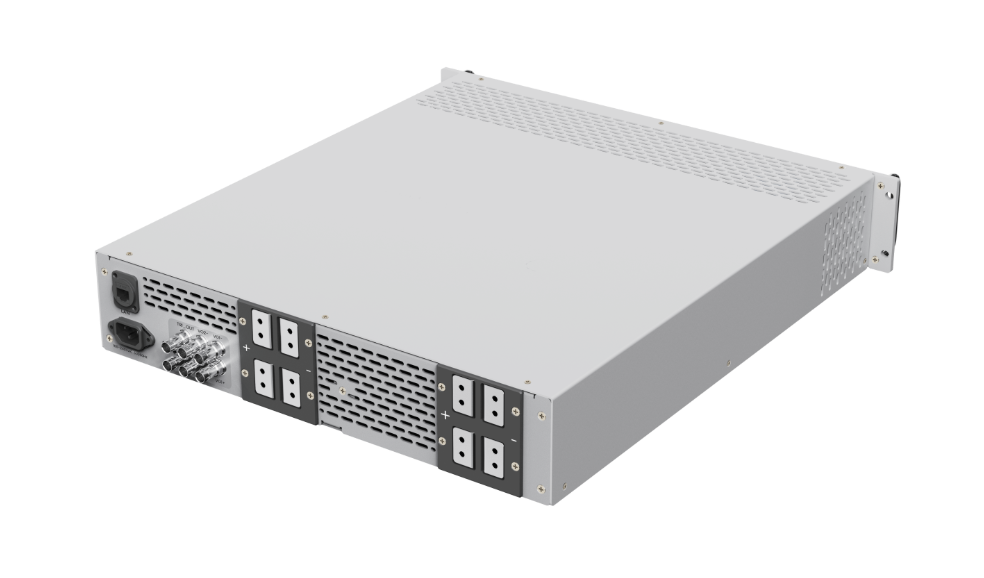

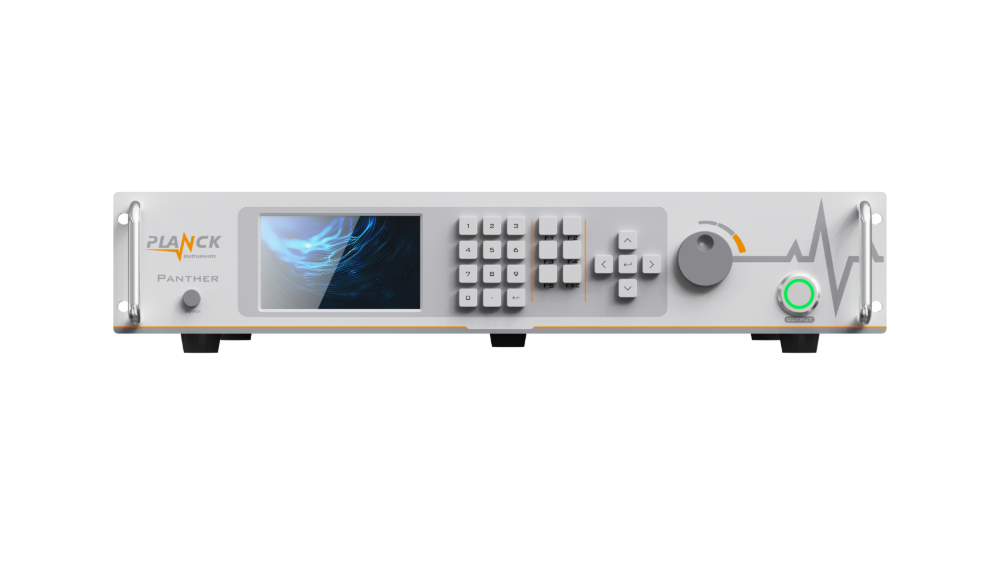

Panther - 5200
Features
- Linear current sharing
- Fast rising edge
- High-current & wide-pulse operation
- Waveform quality modulation
- High DUT voltage tolerance
- Precision compensation
- High-precision sampling under high CMRR & fast slew rate conditions
Parameters
|
Current Source |
Current Measurement | ||||
| Range | Programming Resolution | Accuracy (% + offset) |
Range | Programming Resolution | Accuracy (% + offset) |
|
5A-100A |
2mA |
±(1%+0.1%FS) | 5A-100A | 4mA | 0.5% |
| 101A-500A | 8mA |
±(1%+0.1%FS) |
101A-500A | 30mA | 0.5% |
| 501A-1000A | 16mA | ±(1%+0.1%FS) |
501A-1000A |
60mA | 0.5% |
| 1001A-2000A | 32mA | ±(1%+0.1%FS) |
1001A-2000A |
120mA | 0.5% |
|
Voltage Measurement |
||
|
Range |
Programming Resolution |
Accuracy （% + offset） |
|
10V |
0.5mV | 0.2% ± 1mV |
|
Content |
Specifications | |
| Current Range |
5~2000A |
|
|
Current Accuracy |
≤1% + 0.1%FS | |
| Pulse Width Range |
50μs~10ms |
|
| Pulse Frequency |
0.01~0.2Hz |
|
| Minimum Rise Time |
<20us |
|
