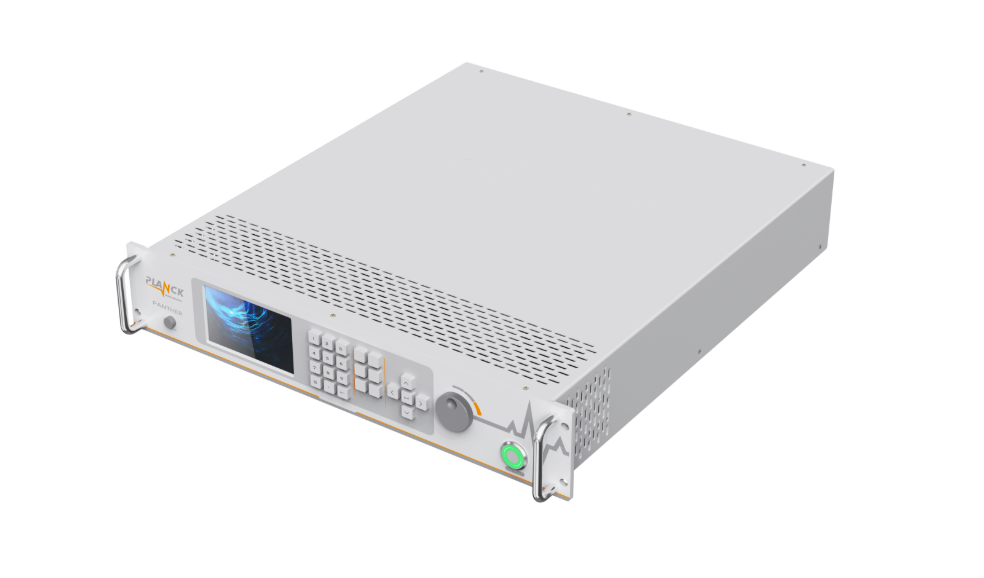

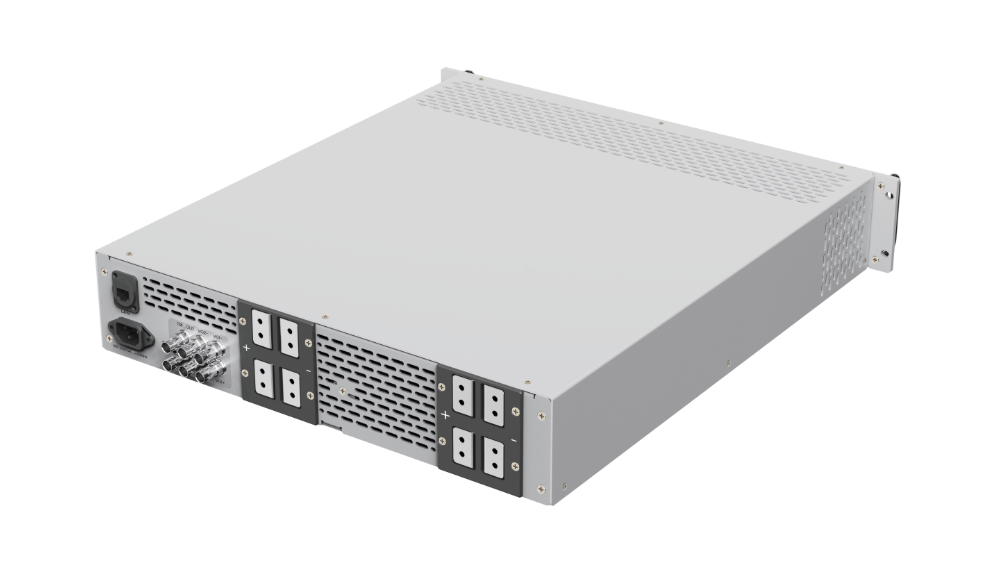

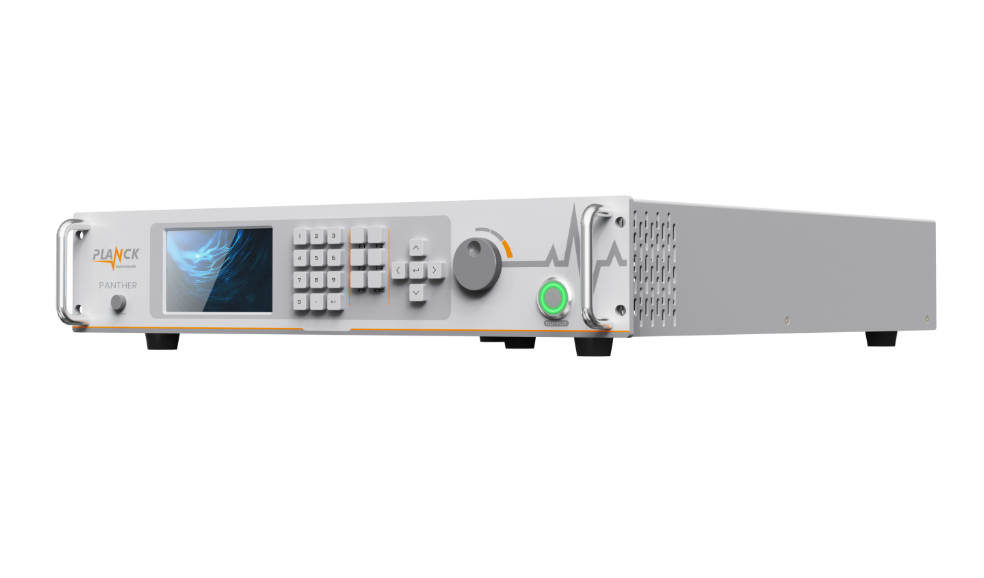

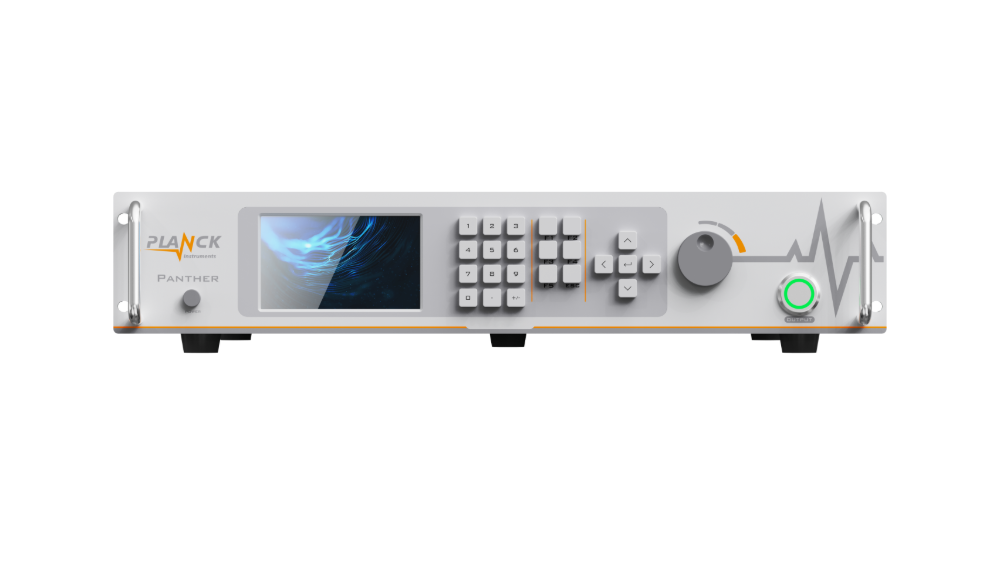

Panther - Pulse High Current SMU 3050/3100/3150/3200
Features
- Widely applicable to the testing requirements of power semiconductor devices such as IGBT and SiC MOSFETs.
- Offering large output current 500A,1000A,1500A,2000A
- Supports dual simultaneous remote voltage measure with configurable sample points.
- Both the rising and falling time of output current can achieve 20μs.（Typical）
- The output pulse width ranges from 40μs to 2ms.
Parameters
|
Current Source |
Current Measurement | ||||
| Range | Programming Resolution | Accuracy (% + offset) |
Range | Programming Resolution | Accuracy (% + offset) |
|
5A-100A |
1A |
0.2% of Range ± 10mA | 5A-100A | 6mA | 0.1% of Range ± 50mA |
| 101A-200A | 1A |
0.2% of Setting ± 10mA |
101A-200A | 25mA | 0.1% of Reading ± 50mA |
| 201A-300A | 1A | 0.2% of Setting ± 15mA |
201A-300A |
25mA | 0.1% of Reading ± 50mA |
| 301A-400A | 1A | 0.2% of Setting ± 20mA |
301A-400A |
25mA | 0.1% of Reading ± 50mA |
| 401A-500A | 1A | 0.2% of Setting ± 25mA |
401A-500A |
25mA | 0.1% of Reading ± 50mA |
| … | … | … |
… |
… | … |
| … | … | … |
… |
… | … |
| 1901A-2000A | 1A | 0.2% of Setting ± 100mA |
1901A~2000A |
25mA | 0.1% of Reading ± 50mA |
|
Voltage Measurement |
||
|
Range |
Programming Resolution |
Accuracy （% + offset） |
|
0-2V |
100μV |
0.01% of Range ± 0.3mV |
| 2V-20V |
700μV |
0.01% ± 1mV |
