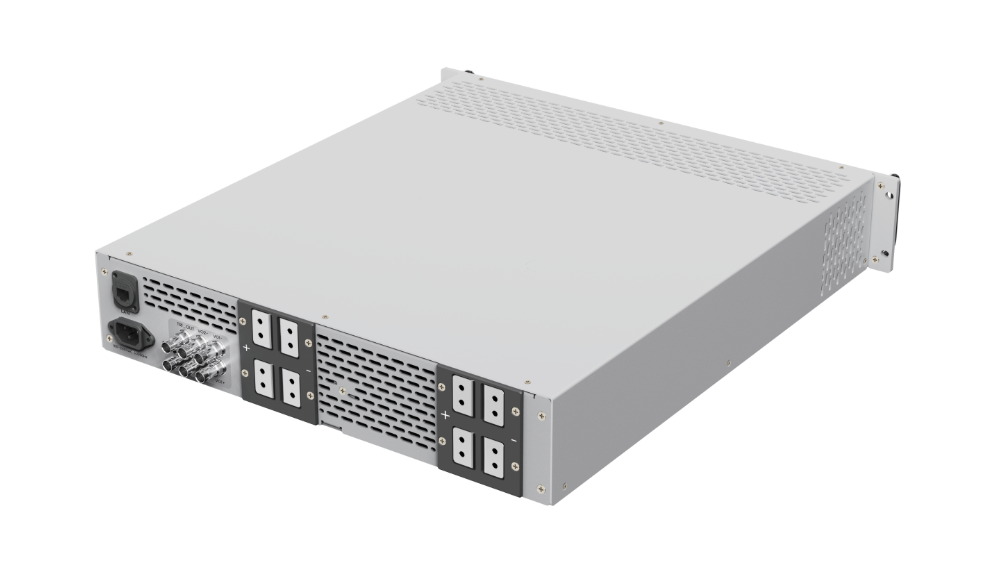

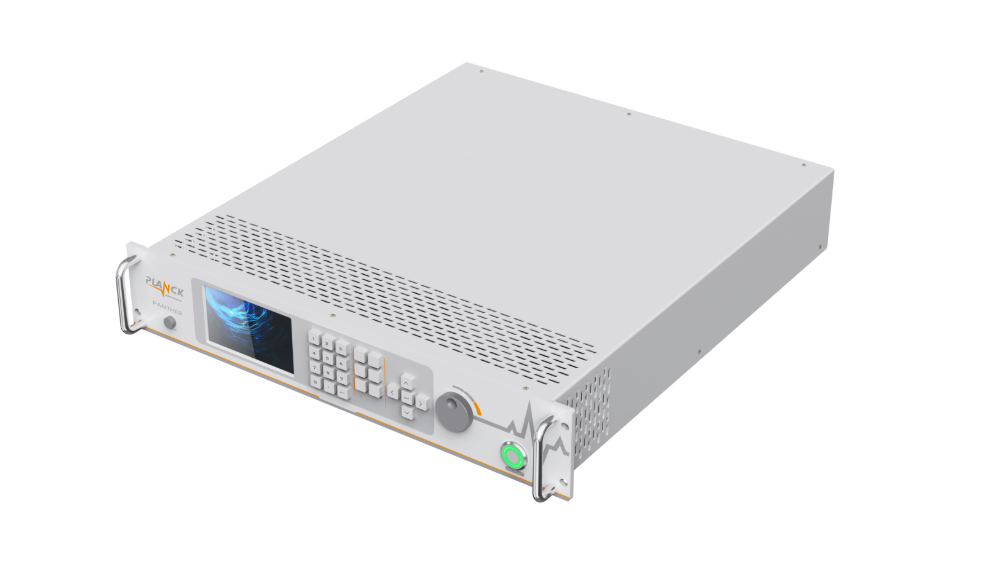

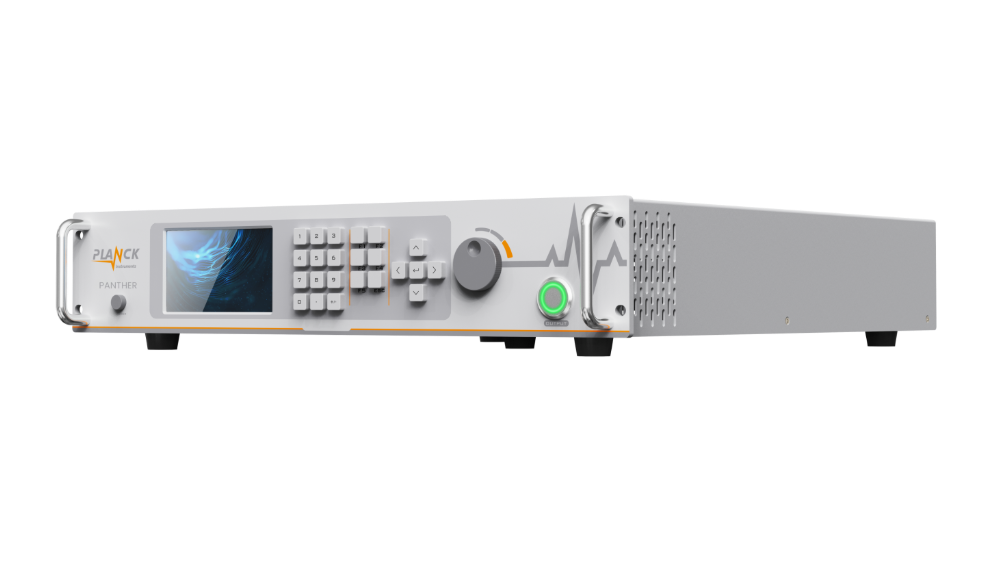

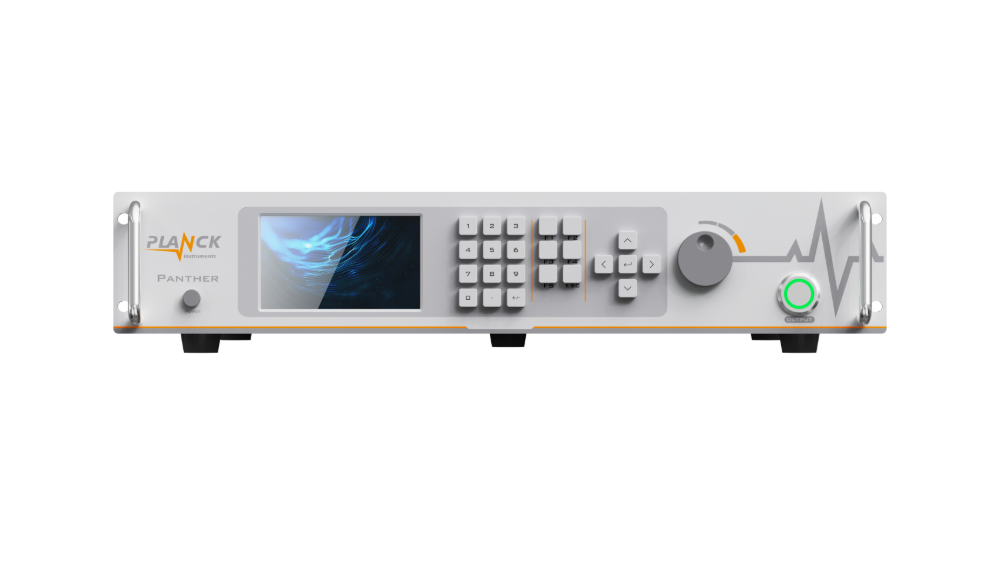

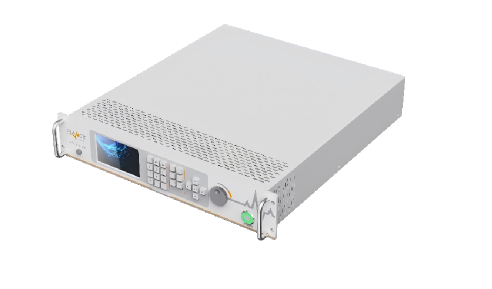

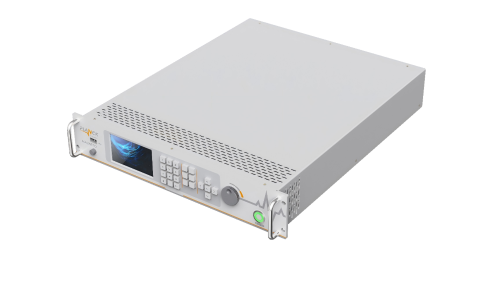

Panther - 3020
Features
- High accuracy, wide output current range, and steep pulse edges
- Supports remote voltage sensing with configurable sampling points
- Adjustable output current from 10mA to 200A, with pulse width adjustable from 20μs to 200μs
- Widely used for testing components such as diodes, IGBTs, and SiC MOSFETs, as well as devices requiring fast-response pulse current and high-speed precision voltage sampling.
Parameters
|
Current Source |
Current Measurement | ||||
| Range | Programming Resolution | Accuracy (% + offset) |
Range | Programming Resolution | Accuracy (% + offset) |
| 40mA |
1μA |
±0.2% ± 50uA | 40mA | 3μA | ±0.5% ± 50μA |
| 300mA | 5μA |
±0.2% ± 50uA |
300mA | 30μA | ±0.5% ± 50μA |
| 1.5A | 30μA | ±0.2% ± 5mA |
1.5A |
300μA | ±0.5% ± 5mA |
| 10A | 200μA | ±0.2% ± 5mA |
10A |
1.5mA | ±0.5% ± 5mA |
| 200A | 4mA | ±0.2% ± 10mA |
200A |
10mA |
±0.5% ± 10mA |
|
Voltage Measurement |
||
|
Range |
Programming Resolution |
Accuracy （% + offset） |
| 0.4V |
20μV |
±0.2% ± 1mV |
| 1V |
40μV |
±0.2% ± 1mV |
| 10V |
400μV |
±0.2% ± 1mV |
